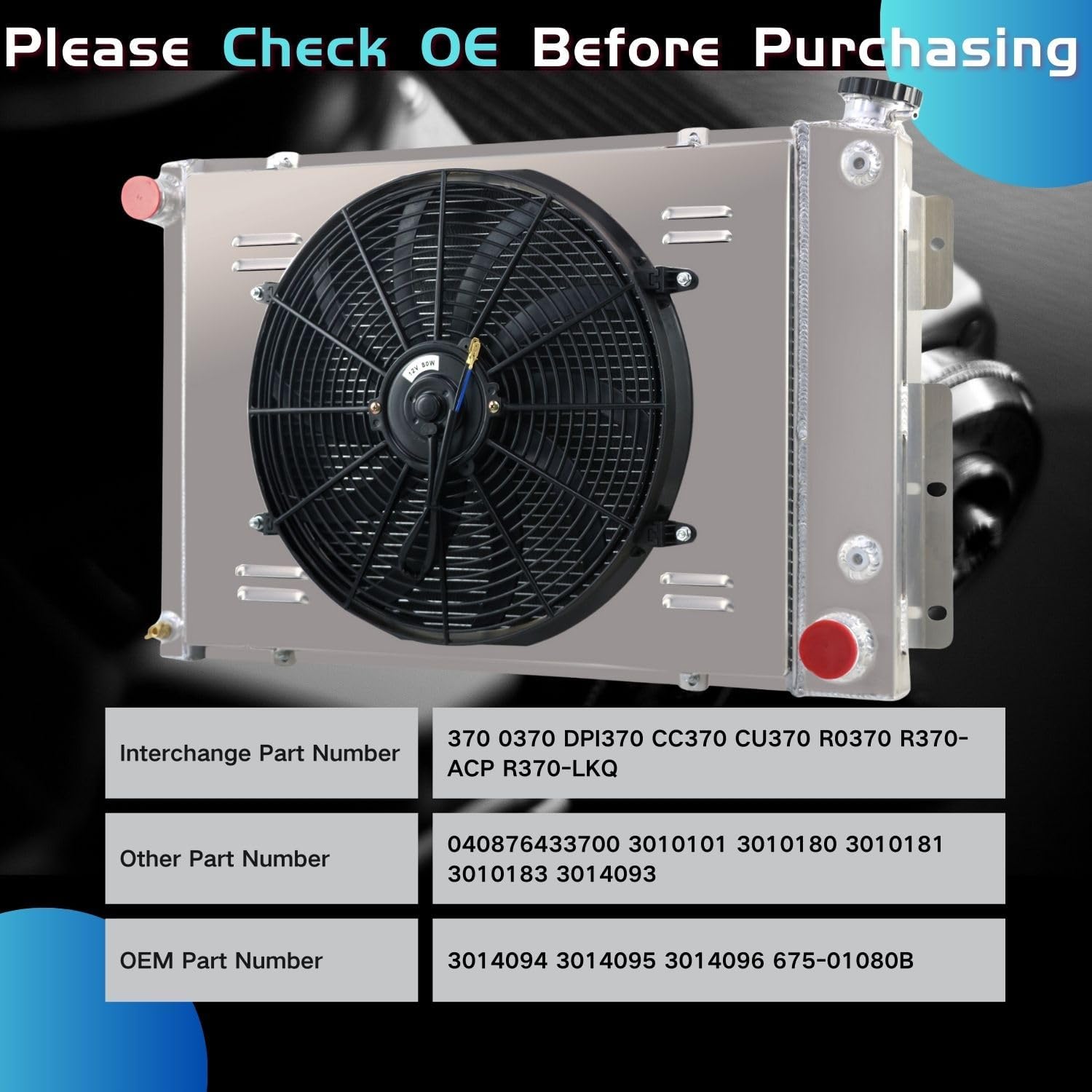

4 Rows Radiator Shroud Fan for 1967-1969 Chevy Camaro/Pontiac Firebird 67 68 69 V8 23'' Core All Aluminum, with Shroud Fan and Relay for Chevy Pontiac Radiators Radiador 1968 for Pontiac Radiators

Vehicle Fitment: FOR 67-69 CHEVY BB Camaro/Firebird/Trams Am 1968 For 67 68 69 Camaro Big Block 23"core For 67 68 69 Camaro/Firebird For Pontiac Firebird Big Block For 67 68 69 Pontiac Firebird / Trans Am For 67 68 69 CHEVY CAMARO BIG BLOCK / FIREBIRD TRANS AM For 1967-69 CHEVY CAMARO/FIREBIRD T/A 5.7L V8 Transmission: Automatic and Manual. Interchange Part Number: 370 0370 DPI370 CC370 CU370 R0370 R370-ACP R370-LKQ Other Part Number: 040876433700 3010101 3010180 3010181 3010183 3014093 OEM Part Number: 3014094 3014095 3014096 675-01080B This Listing Is Including: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Size: Condition:New Material:Aircraft grade aluminum tank & core High Performance Racing Spec. 4-Row of tubes Core Racing Design Core Dimensions: 17" High X 23" Wide Overall Dimensions: 19-1/4" High (top of cap )X 30-1/4" Wide (Incl. Brackets) Upper INLET: 1-1/2" located on the DRIVER side. Lower OUTLET: 1-3/4" located on the PASSENGER side. Mounting System: Bracket Transmission Cooler: Included Fit 23" core only Petcock Drain:OEM style brass petcock drain Radiator Cap:CNC machined filler neck and cap FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.

• [Vehicle Fitment]: For 1967-1969 CHEVY CAMARO ALL ENGINES 23" WIDE CORE; For 1967-1969 PONTIAC FIREBIRD/TRANS AM ALL ENGINES 23" WIDE CORE
• [Specifications]: Core Dimensions: 17" High x 23" Wide x 2-5/8" Thick. (4 Row Core+Shroud fan+Relay) ; Overall Dimensions: 19-1/4" High (top of cap) x 30-1/4" Wide (Incl. Brackets); Upper INLET: 1-1/2" ; Lower OUTLET: 1-3/4"
• [Reference Number]: 3014094 3014095 3014096 675-01080B 370 0370 DPI370 CC370 CU370 R0370 R370-ACP R370-LKQ 040876433700 3010101 3010180 3010181 3010183 3014093
• [Advantage]: All aluminum construction & TIG-welded craftsmanship fully. High performance design, improves cooling by 30%+ temp
• [Customer Support]: If you have any questions about our cooling fan replacement, never mind contact our friendly,helpful,and knowledgeable customer service representatives,we will be glad to address any questions or concerns promptly.
• [High Quality Material]: All Aluminum Radiator is made of AA5052 Aluminum construction, all item is 100% inspected and tested for quality assurance
