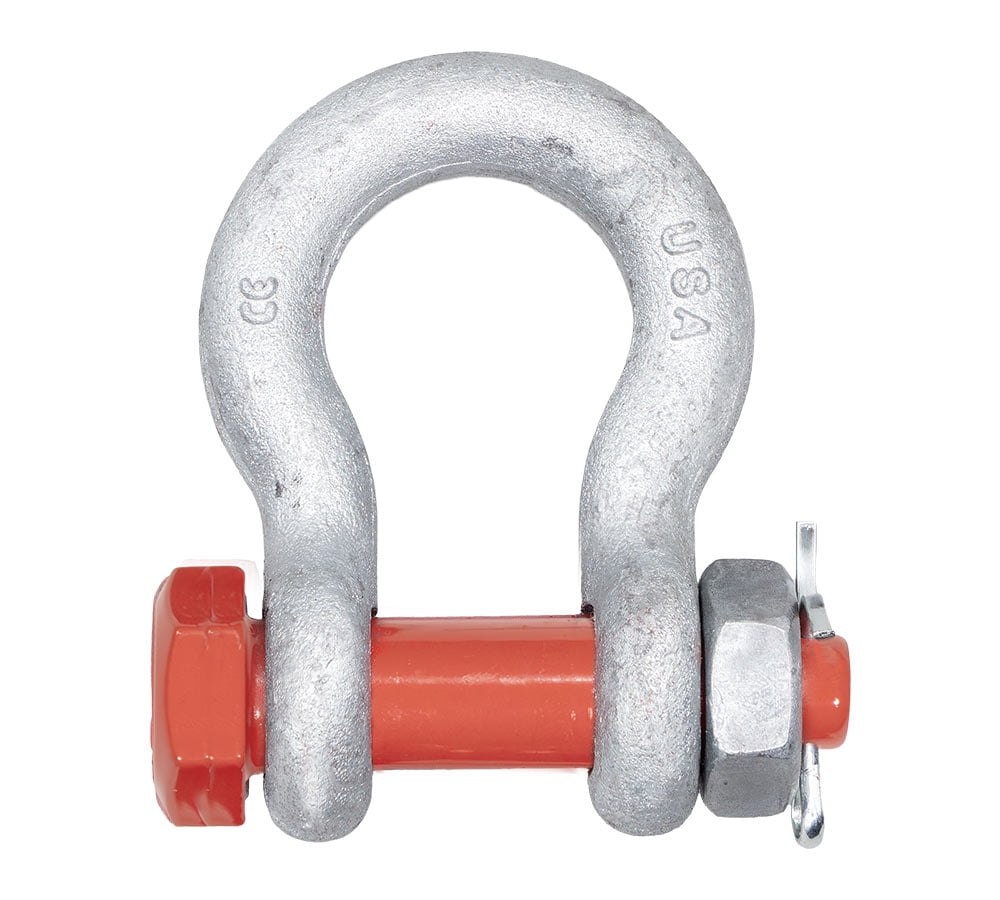

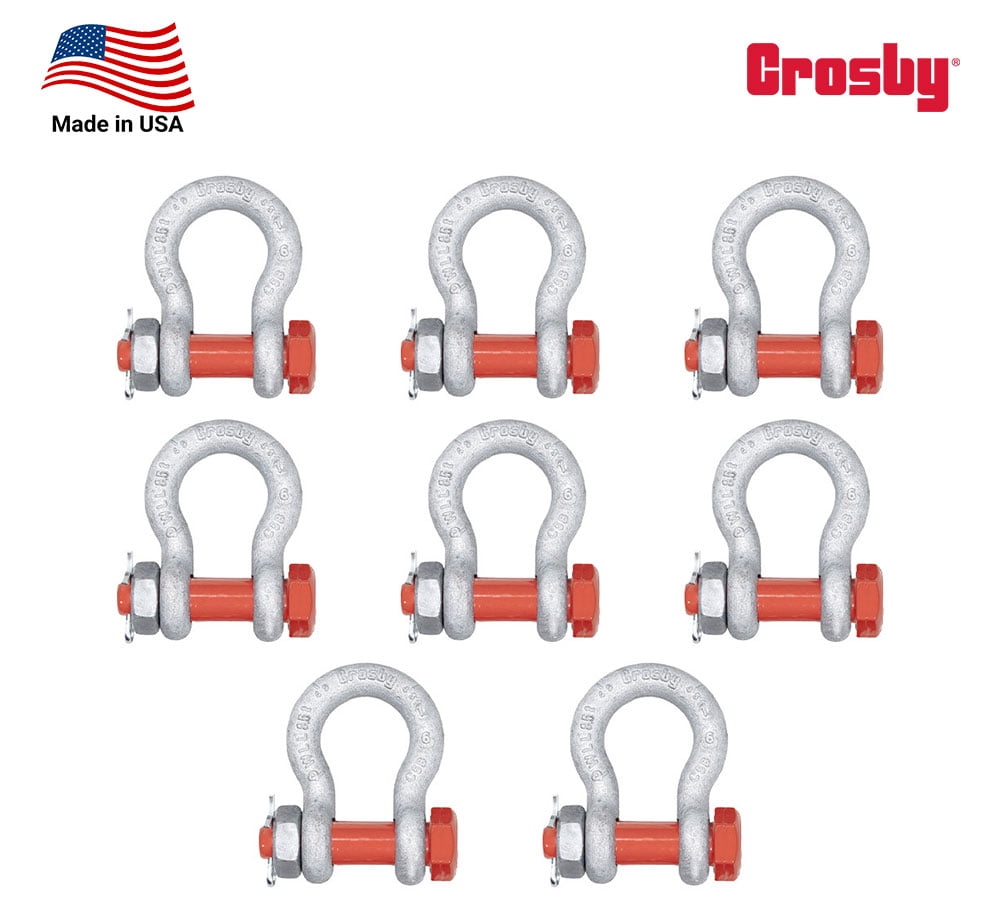

8 Pack Crosby G-2130 1"Anchor Shackle Carbon Steel w/Safety Screw Pin 18,700 lbs WLL, Galvanized Heavy Duty D Ring Bolt Type Shackle for Towing, Rigging & Vehicle Recovery, 1019551

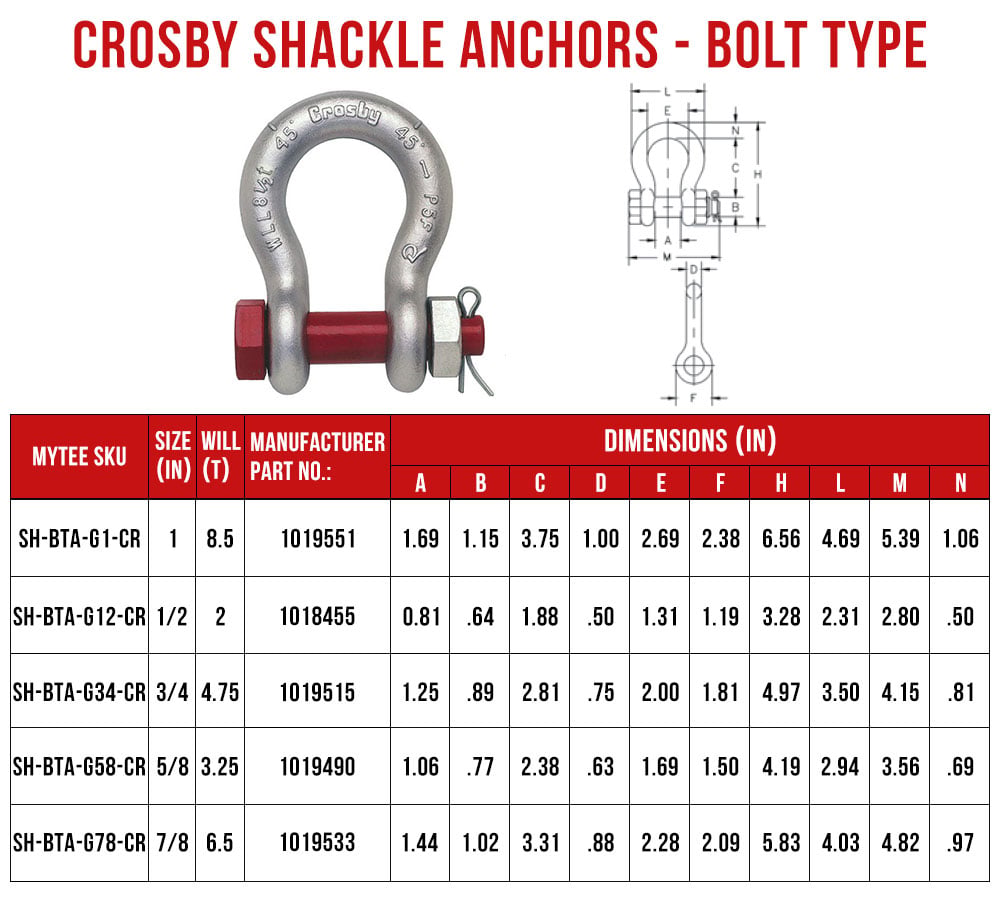

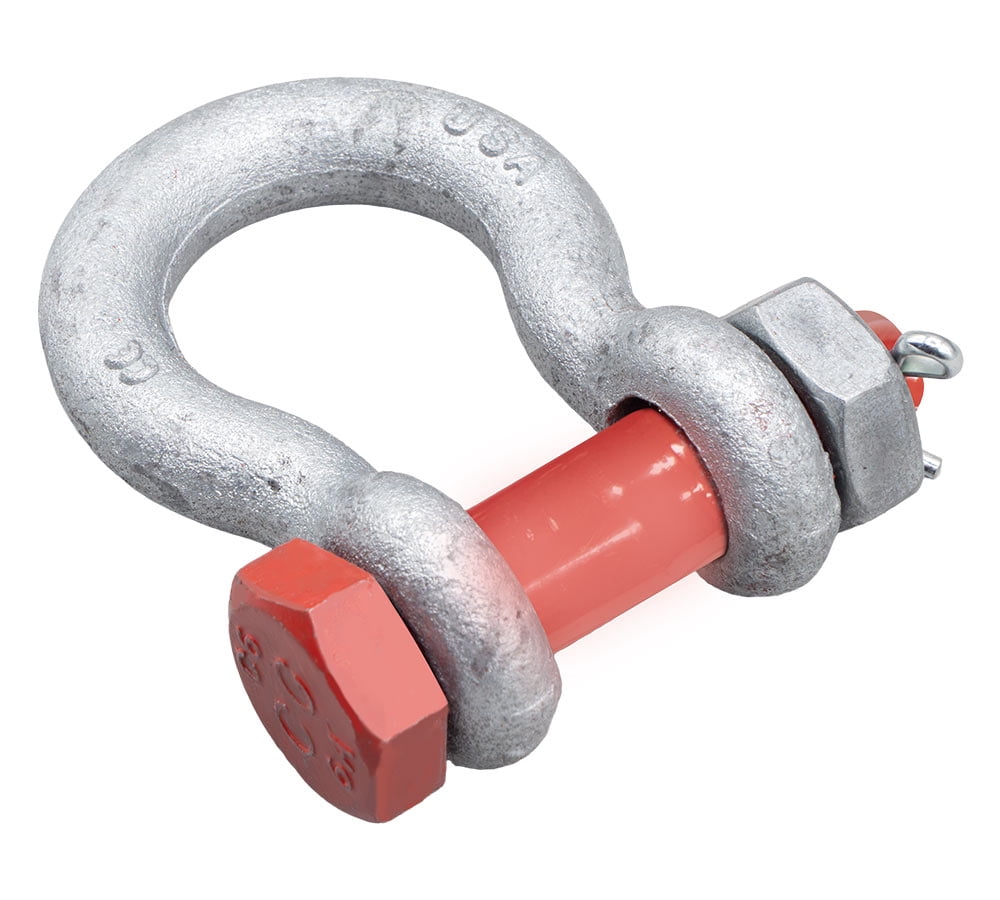

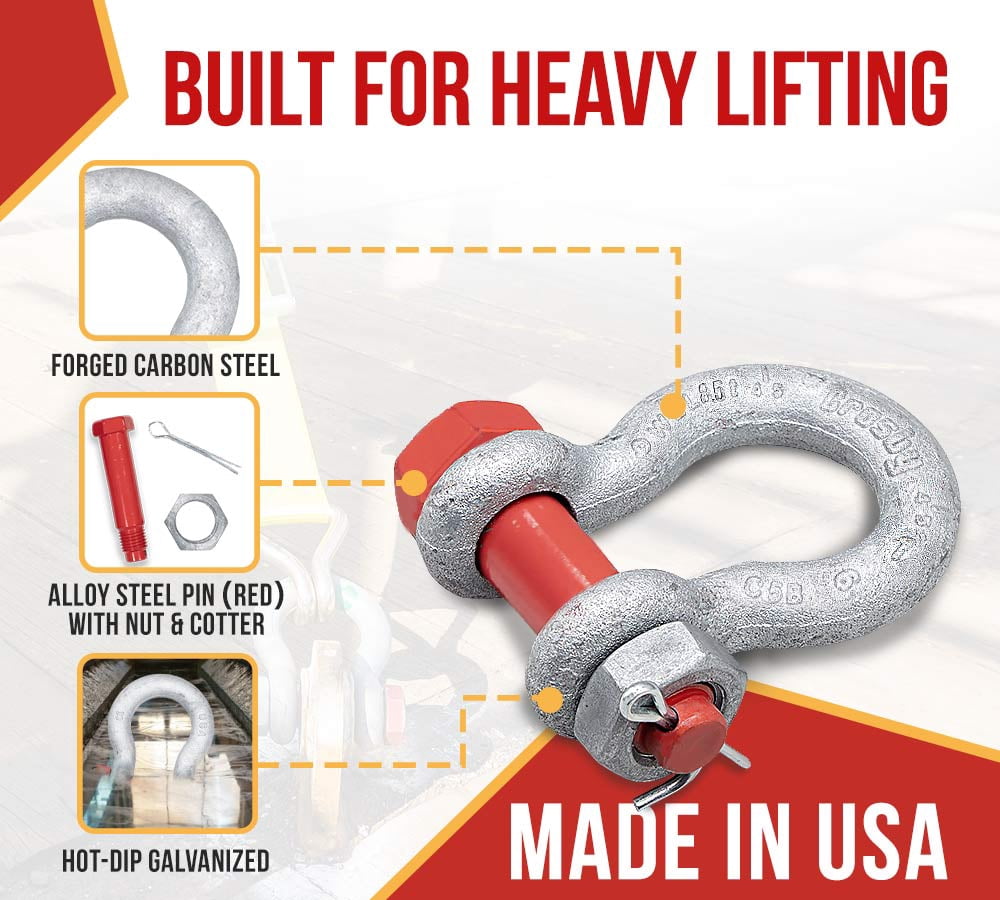

<p>Looking for strong and reliable rigging hardware? We introduce the Crosby G-2130 Anchor Shackle 8.5 Ton WLL, 1 In. Bolt-type Shackle - 1019551 that you can use in tie-downs, towing, suspension, or lifting applications. Know in-depth about the Crosby bolt-type shackle below:&nbsp;</p> <ul> <li><strong>Size &amp; Capacity: </strong>This Crosby 1019551 shackle anchor is available in a size of 1", with an overall length of 6.56". Its throat opening is&nbsp; 1.69". The inside length and inside width are 3.75" and 2.69" respectively. The working load limit of this anchor shackle is 8.5 tons or 18,739 lbs, and the safety factor is 6:1. This shackle anchor is fatigue rated to 20,000 cycles at 1.5x WLL for dynamic lifting applications.</li> <li><strong>Material &amp; Construction:&nbsp;</strong>This anchor shackle is made using forged, quenched, and tempered steel, which provides it with exceptional strength and durability. With a hot-dip galvanized finish (standard G-2130 series), it comes with excellent corrosion tolerance in harsh environments. The bolt with this shackle is made from alloy steel.</li> <li><strong>Bolt with Nut and Cotter Pin:&nbsp;</strong>It includes a bolt-type threaded cotter pin of diameter&nbsp;1.15"&nbsp;that locks the bolts and nuts in place and allows them from not loosening due to vibrations or heavy loads. The pin is more durable as it improves safety and makes the shackle suitable for long-term, heavy-duty tasks where a secure connection is essential.</li> <li><strong>Application:&nbsp;</strong>The 1" anchor shackle is useful in different industries for lifting and rigging applications. It can be used with wire ropes, slings, or chains to lift heavy loads. This bolt-type shackle is also suitable for overhead lifting. It can be a part of a rigging system, employed to tie down or anchor heavy equipment during transportation for load securement. This shackle is ideal for use from -40°F to 400°F.</li> <li><strong>Standard Compliance:</strong> This anchor shackle meets or exceeds ASME B30.26, RR-C-271H Type IVA, Grade A, Class 3 specifications (except contractor provisions). The compliance with standard requirements makes this product a trusted choice in construction, offshore, utilities, maritime, and heavy industrial rigging.</li> </ul> <p><strong>How to Use It?</strong></p> <ul> <li>Insert the bolt-type shackle pin through the connection point of your load or equipment, and ensure that the pin is fully seated.</li> <li>Tighten the threaded pin securely to reduce loosening, using appropriate tools if necessary to achieve a snug fit.</li> <li>Double-check that the shackle is properly aligned and that no part of the load is exerting pressure against the pin to avoid accidental loosening.</li> <li>Inspect the shackle regularly during use to ensure it remains tightly secured, especially under heavy loads or in vibration-prone environments.</li> </ul> <p><strong>Safety Considerations</strong></p> <ul> <li>Always ensure the working load limit of the shackle matches or exceeds the load requirements to reduce overload or failure.</li> <li>Avoid side loading; shackles are designed for straight-line pulls, so position them carefully to avoid bending or stress on the pin.</li> <li>Regularly inspect shackles for wear, corrosion, or damage before each use and replace any that show signs of weakness.</li> <li>Use only compatible components, such as chains or slings with similar WLL ratings to maintain secure connections and reduce accidents.</li> </ul>

• Size: 1" ; Type: Bolt-Type Anchor Shackle ; Material: Carbon Steel ; Color: Gray (Red Pin)
• Surface Finish: Galvanized ; Bolt Material: Alloy Steel ; Brand Part Number: 1019551

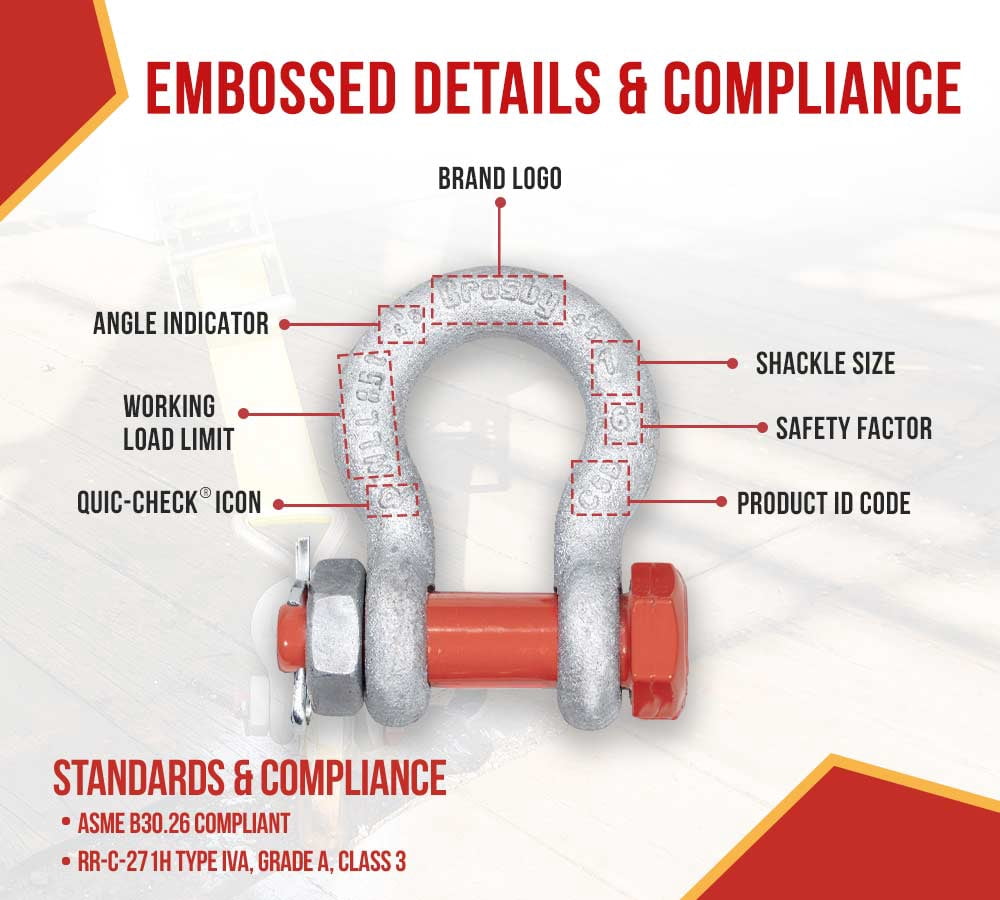

• Model: G-2130 ; Standards: Meets or exceeds ASME B30.26, RR-C-271H Type IVA, Grade A, Class 3 specifications (except contractor provisions) Rated for Overhead Lifting ; Made in USA
• Working Load Limit: 8.5 Ton (18,700 LBS) ; Breaking Strength: 51 Ton ( 112,400 LBS)
• Inside Width: 2.69" ; Throat Opening: 1.69" ; Pin Diameter: 1.15"
