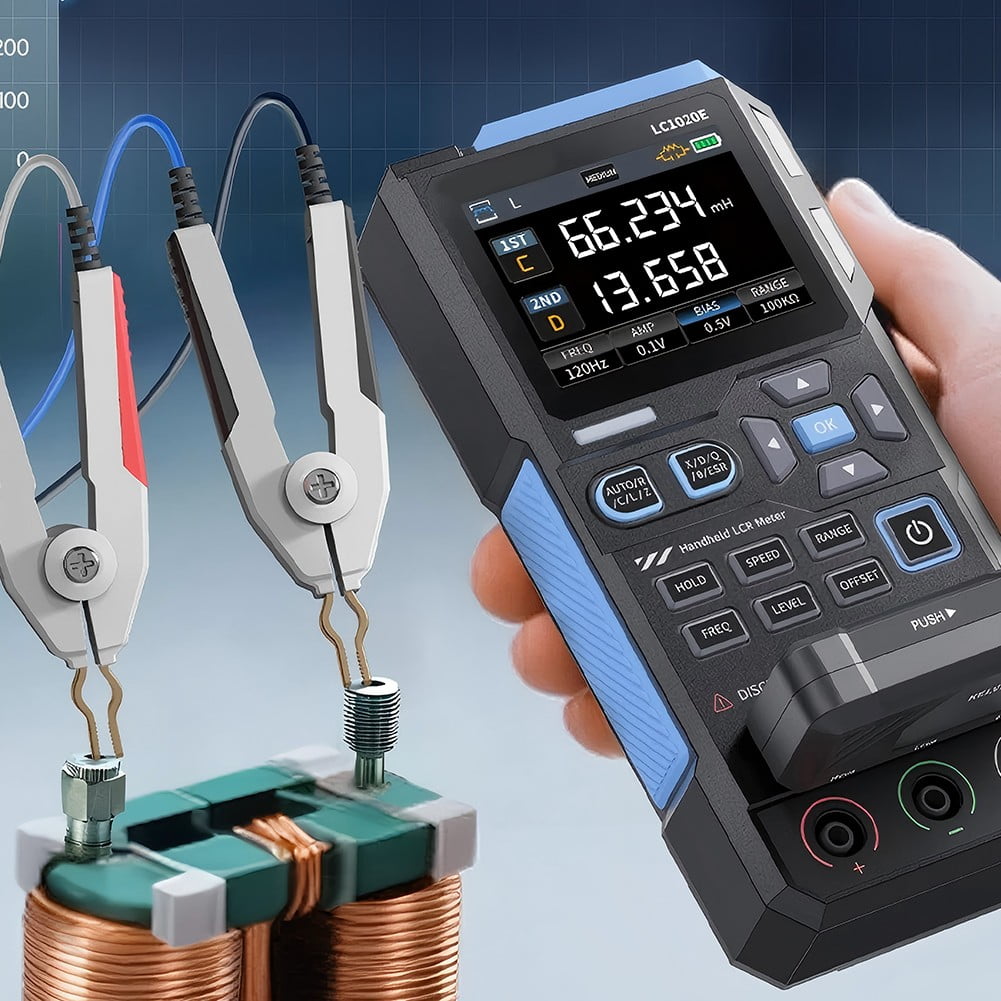

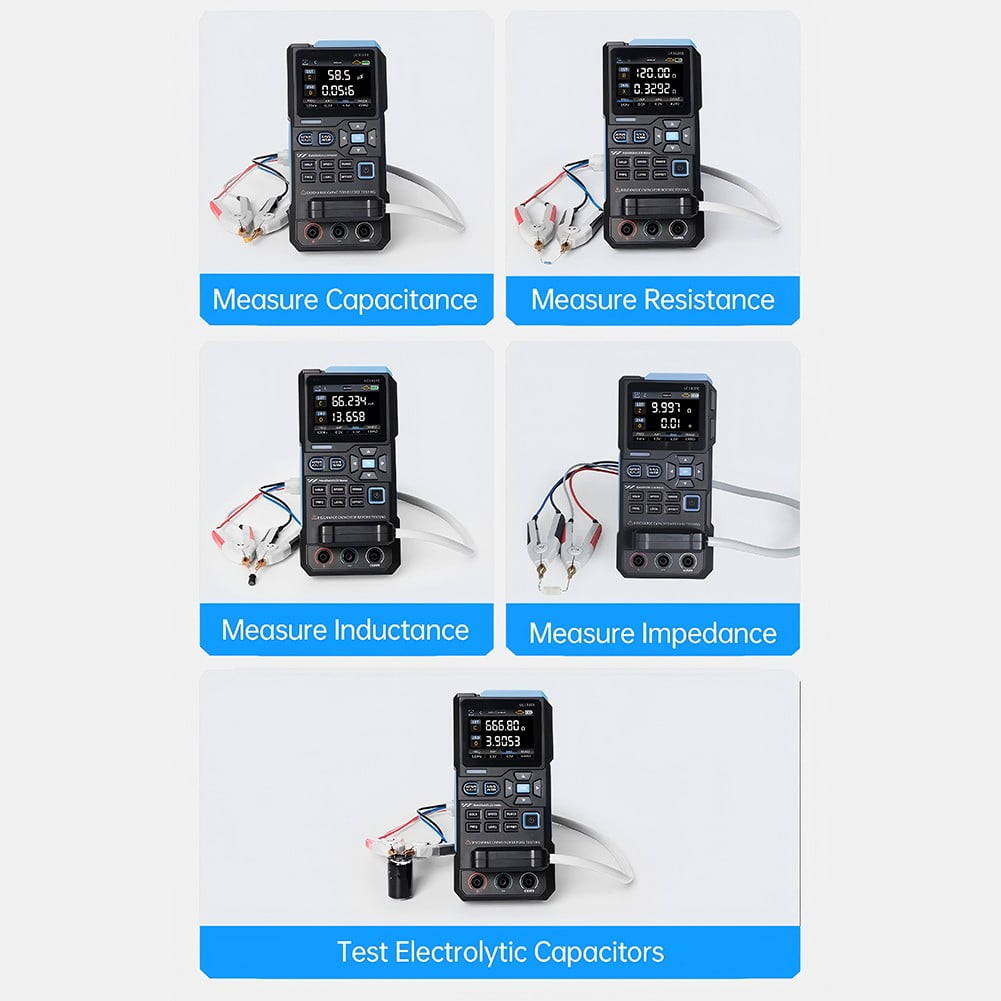

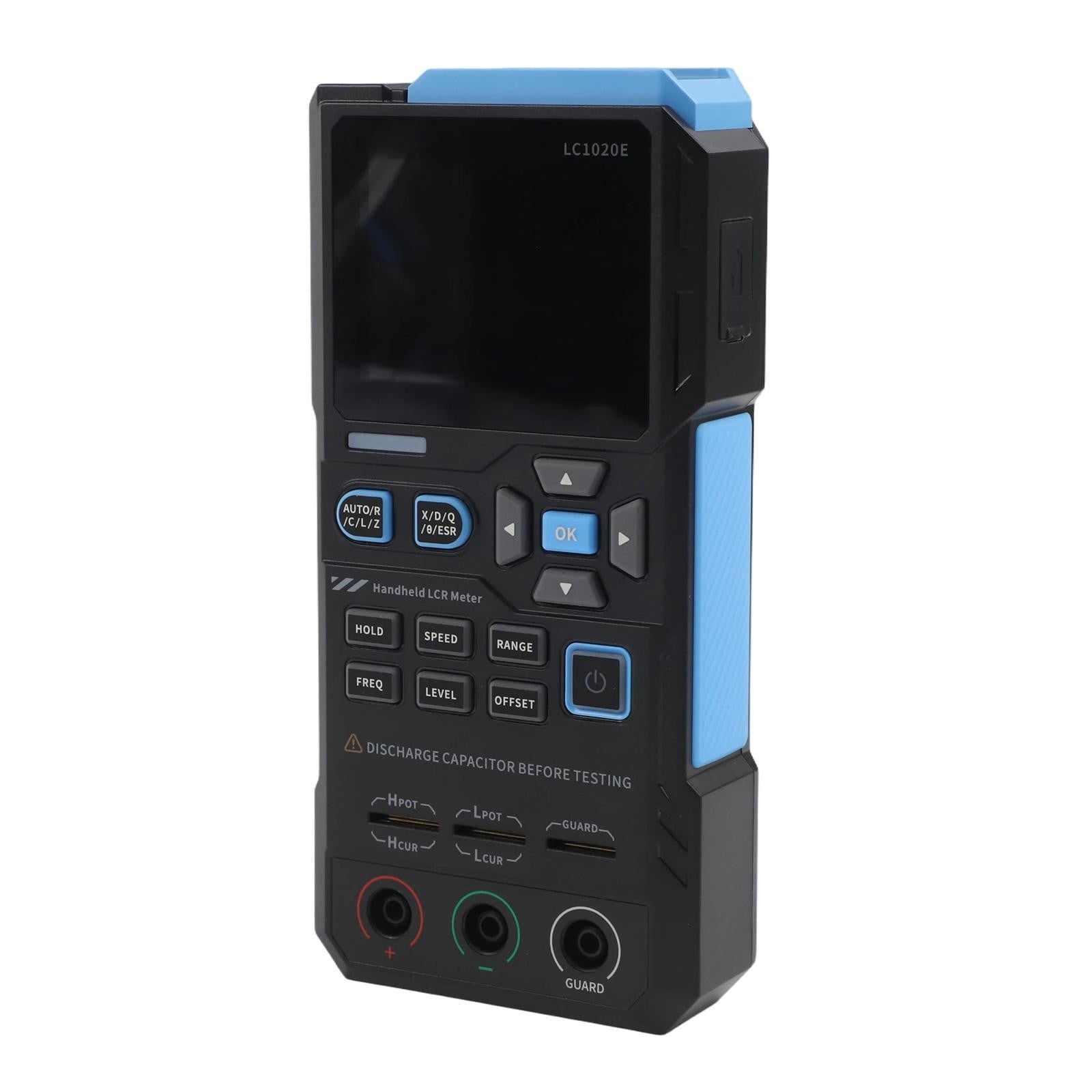

LC1020E Digital Bridge LCR ESR Tester for Resistance, Capacitance and Inductance

<p><strong>Features:&nbsp;</strong><br></p><p>1. High-Precision, Wide-Range Measurement: The LC1020E boasts a basic accuracy of up to 0.3%, reliable and precise professional measurements. It supports a wide measurement range of inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for a wide range of components.</p><p>2. Multiple Frequencies and Selectable Test Levels: This LCR meter five selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and three test levels (0.1V, 0.3V, 0.6V), providing the flexibility to accurately analyze component characteristics under a wide range of conditions, from general-purpose testing to high-frequency parameter analysis.</p><p>3. Dual Test Ports for Versatile Versatility and Reliability: The device a convenient three-terminal test socket for quick, everyday measurements, as well as a five-terminal test slot. The five-terminal configuration supports full four-terminal Kelvin measurements when used with professional test fixtures, minimizing impedance errors and &nbsp;the highest measurement accuracy. 4. Intelligent Component Sorting and Data Logging: The intelligent comparison function significantly improves batch testing efficiency. Simply set the nominal value and tolerance (0.1% - 99.9%) to automatically sort components, with pass/fail results confirmed via visual and audio prompts. Data logging mode records the number of pass and fail measurements for effective quality control.</p><p>5. Portable Design, Clear Display, and Long Battery Life: The LC1020E is designed for laboratory, production line, and field use. Its compact design a powerful 3.7V, 3000mAh rechargeable lithium battery. The large 2.8-inch TFT color screen clearly displays all primary and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurement values anytime, anywhere.</p><p><br></p><p><strong>Specifications:</strong></p><p>Part Name: LC1020E Digital Bridge Handheld Tester</p><p>Material: ABS</p><p>Model: LC1020E</p><p>Color: Black</p><p>size: As shown</p><p>1. Display: 2.8-inch TFT LCD</p><p>2. Basic Accuracy: 0.3%</p><p>3. Number of Display Digits: Primary Parameter: 4.5 digits; Secondary Parameter: 4.5 digits</p><p>4. Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz</p><p>5. Test Level: 0.1V, 0.3V, 0.6V</p><p>6. Internal Bias: 0.0V, 0.5V</p><p>7. Measurement Parameters: Primary Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESR</p><p>8. Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ</p><p>9. Measurement Speed: Fast (4 times/second), Medium (2 times/second), Slow (1 time/second)</p><p>10. Calibration Function: Open-circuit calibration, short-circuit calibration</p><p>11. Comparison Function: Calculates the relative error between the measured component value and the nominal value, displays it as a percentage, and provides a filtered result. The nominal value and tolerance can be set, with an adjustable range of 0.1% to 99.9%.</p><p>12. Recording Function: Checks whether the measured component data meets the set nominal value and tolerance, and records the number of successful and failed measurements. 13. Test terminal configuration: three-terminal, five-terminal</p><p>14. Output impedance: 100Ω</p><p>15. Communication interface: Type C (virtual serial port)</p><p>16. Other functions: Language setting, screen brightness, sound settings, auto power off, calibration settings, system information.</p><p><br></p><p><strong>Package Contents:</strong></p><p>1. LC1020E LCR meter *1</p><p>2. Data cable *1</p><p>3. Short circuit board *1</p><p>4. Kelvin test clip *1</p><p>5. Test (black *1 + red *1)</p><p>6. User manual *1</p><p><br></p><p></p><p><strong>Note:</strong></p><p>1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.<br>2. Please allow slight manual measurement deviation for the data.</p><p><br><br></p><p><br></p>

• 【FLEXIBLE TESTING OPTIONS】 This LCR meter offers five selectable frequencies ranging from 100Hz to 100kHz and three test voltage levels (1V, 0.3V, 0.6V), allowing users to perform detailed analysis under various conditions tailored to their needs.

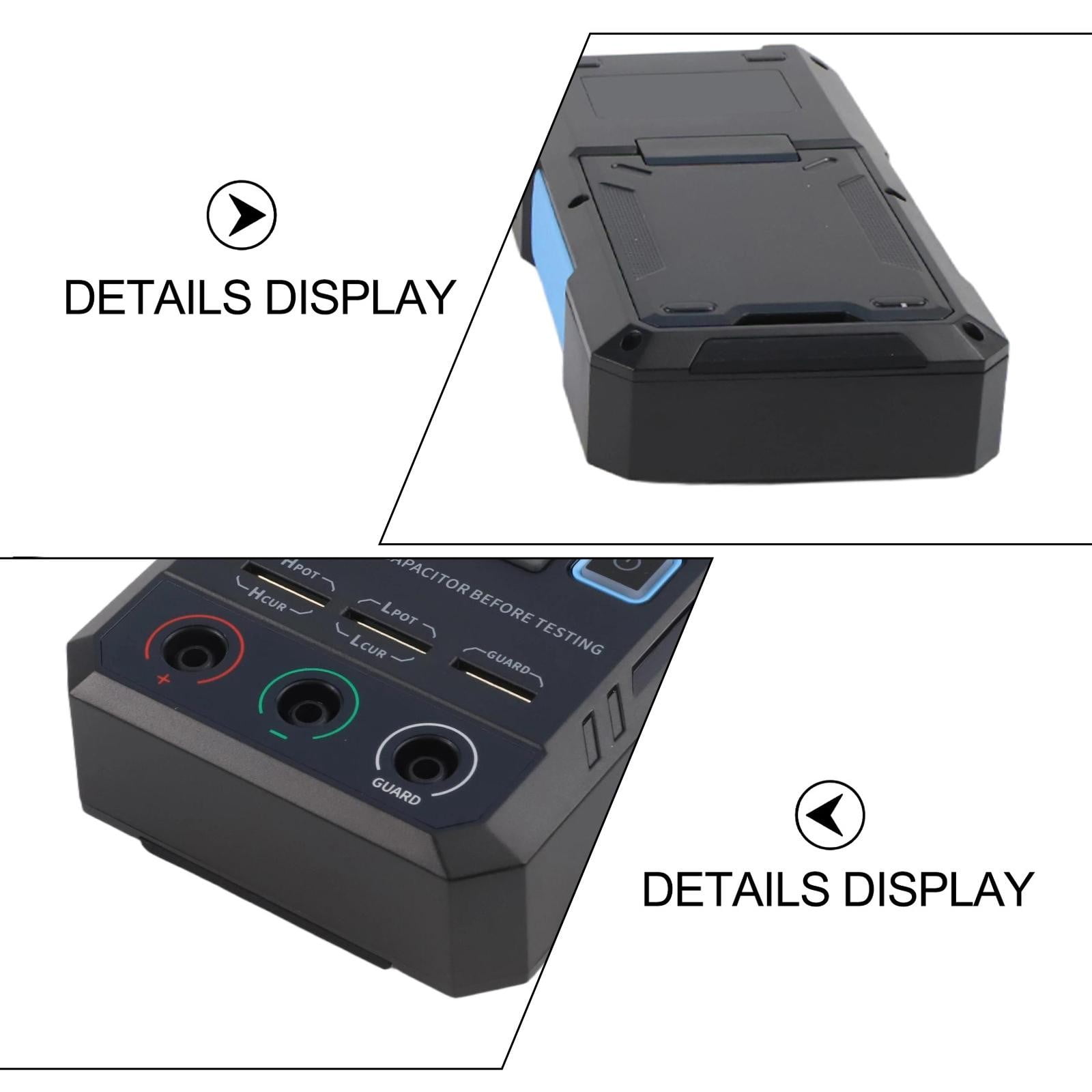

• 【EFFICIENT DUAL TEST PORTS】 The device features convenient three-terminal and advanced five-terminal test slots which support full four-terminal Kelvin measurements when used with compatible fixtures, minimal impedance errors and maximum measurement reliability.
• 【SMART COMPONENT SORTING FEATURE】 Enhance your testing efficiency with the intelligent sorting function that allows setting nominal values and tolerances for automatic sorting of components with clear pass/fail indicators through visual and audio prompts.

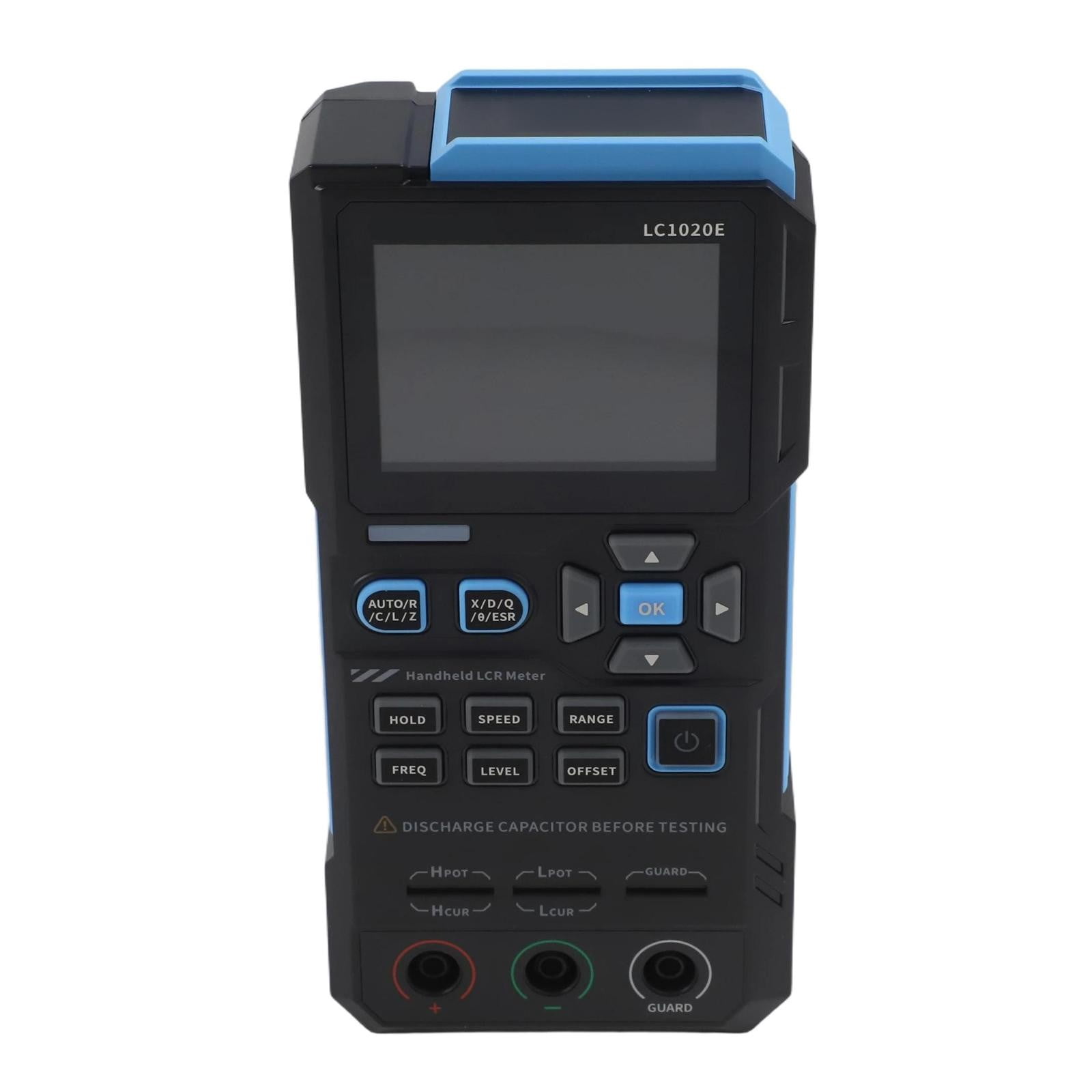

• 【COMPACT AND CLEAR DISPLAY】 The LC1020E is designed for ease of use in any environment, featuring a large 8-inch TFT display that shows all key parameters clearly while its rechargeable battery ensures long-lasting performance .
